Megajolt V4
Engine management systems

We are now pleased to be able to offer the latest Megajolt V4 systems.

!

Complete Megajolt system for Ford Zetec engines

!

The Zetec engine comes from the factory with most of the hardware needed to run the Megajolt, making this a particularly easy installation.  There is no need to replace your original Ford coil pack, crank sensor or plug leads although we can supply new ones should you wish.

System includes:

  • Megajolt V4 ECU
  • New coil pack connector
  • New crank sensor connector
  • Refurbished EDIS Ignition module and connector
  • All software and cables required to tune the system
  • Loom kit



Complete Megajolt bundle for four cylinder engines

!

Contains:

  • Megajolt V4 ECU
  • New coil pack and connector
  • New crank sensor and connector
  • Refurbished EDIS Ignition module
  • Universal crank sensor bracket
  • Coil pack bracket
  • Loom kit
  • 36-1 trigger wheel
  • Set of 8mm silicone spark plug leads
  • All software and cables required to tune the system and maps for a wide range of engines

Complete Megajolt bundle for Rover V8 engines

!

Contains:

  • Megajolt V4 ECU
  • Pair of new coil packs and connectors
  • New crank sensor and connector
  • Refurbished EDIS Ignition module
  • Crank sensor bracket
  • Twin coil pack bracket
  • Loom kit
  • 36-1 trigger wheel
  • Set of 8mm silicone spark plug leads
  • All software and cables required to tune the system and maps for a wide range of engines

Megajolt ECU V4

From
!
Megajolt V4
The Megajolt Lite Jr. (MJLJr) is a fully configurable, stand-alone 3D ignition controller designed to control ignition via one of our EDIS kits.  Suitable for 4, 6 or 8 cylinder engines.

Our systems are fully built and include connector pre-wired with loom tails ready for connecting into your vehicle.  Also included are full instructions and RS232 cable to connect to your PC.

  • 10 x 10 ignition map, with full linear interpolation between values
  • Load axis calibrated by on-board Manifold Pressure (MAP) sensor or external Throttle Position Sensor (TPS)
  • Four user-defined output switches, triggered on RPM or load
  • 'Shift light' output- for driving a dash-mounted shift light

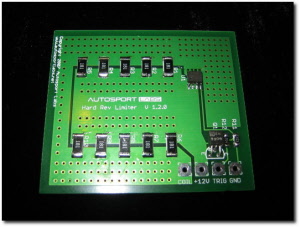

  • External Rev-Limit trigger output
  • Modern, easy to use, and customizable Windows-based configuration software
    • Load, modify and save Ignition Configuration
    • View, log and interact with engine runtime data
    • Interactively visualize and tune ignition map
  • Dual, on-the-fly switchable ignition configuration
  • Configurable cranking RPM advance



For more information on the Megajolt ECU:

Documentation and How-To:

http://www.autosportlabs.net


Community Forums:

http://www.autosportlabs.org

USB-serial adaptors

!
USB-serial adaptor for computers lacking a serial port.

Many new laptops and PCs do not come with a serial port.  These adaptors plug into a USB socket and allow you to connect up to your ECU.

Many cheaper adaptors give problems, these adaptors use a premium FTDI chipset and tested to work with Megajolt, Megasquirt and Emerald ECUs.

Megajolt mounting brackets

!
mjbarebrackets130

Anodised alloy mounting flanges to fit megajolt V4 ECUs.

Brackets slide into the grooves on the side of the Megajolt.  Here you can see them fitted .
