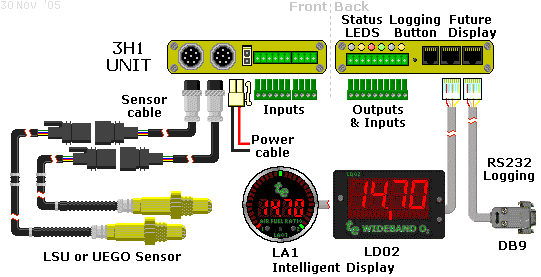

The image at left shows how 3H1 is connected to other WBo2 wideband components.
Clockwise from the bottom left, the sensors are connected via two sensor cables. The sensor cables' circular 8 pin connectors mates with the wideband 3H1 unit. 3H1 needs a source of power provided by the two pin power connector. The 6 status LEDs are shown above the 10 pin connector.
Beside the LEDs is the logging button that controls on-board logging. Going from the front of 3H1 to the back, there are 20 I/O connector pins spread across an 4+6 (back) and 10 pin (front) unpluggable connectors. The back has another button, then a 6 pin JRJ45 connector carrying a low speed data channel for a dedicated display. Lastly there are two 8 pin RJ45 connectors carrying RS232 data as well as other signals that are used to provide connection to PC RS232 connectivity and an intelligent display. Shown are the LD02 and LA1 displays.
