Megasquirt Engine management systems

Since 2001 the Megasquirt family of ECUs has been making the benefits of mappable fuel injection and ignition systems accessible to everyone.  With functionality usually only found on far more expensive systems Megasquirt ECUs have been used on everything from land speed racers to lawnmowers and pretty much everything in between!

Please note that we are now shipping the new Microsquirt V3.  The V3 system is capable of controlling two external ignition drivers or an EDIS ignition module.  If you want to directly drive ignition coils we will be stocking a range of suitable ignition drivers.

!

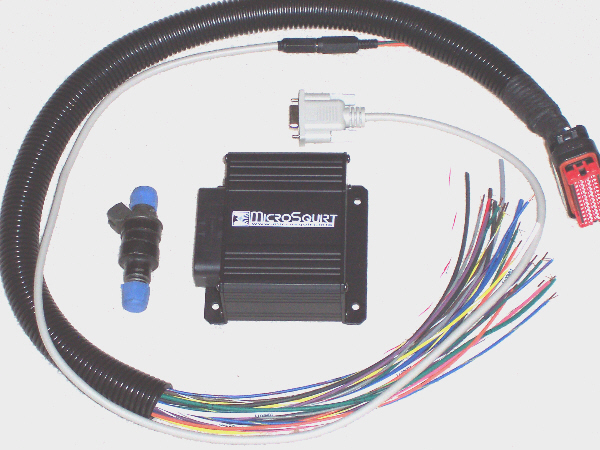

Megasquirt/Microsquirt ECU

uSquirt
The Microsquirt is the latest addition to the popular Megasquirt family.  Controlling both ignition and injection in an extremely compact form factor it is a very capable system at a very attractive price point.  The Microsquirt is a great match for 4-cylinder engines and can also run V6, V8 and other engines too.   We now stock the latest Microsquirt V3 system.
  • Two ignition outputs suitable for:
    • EDIS based ignition for 4, 6 or 8 cylinder engines
    • Control of distributor driven spark on all engine types using off-board ignition module
    • Wasted spark ignition on 4-cylinder engines using off-board ignitors.
  • Two injection channels for either one low impedance fuel injector per channel or up to four high impedance injectors per channel
  • Coolant and air temperature sensor inputs
  • Oxygen sensor input
  • MAP sensor input
  • Throttle sensor input
  • Engine speed input
  • Fuel pump and Fast idle (IACV) valve outputs
  • Tacho output
  • Boost control
  • CANbus
  • Soft and Hard-cut rev limiter
  • Sealed case, little larger than a pack of cards
  • 35 pin ampseal connector and loom

If required we can also supply sets of high impedence fuel injectors and matching "mini timer" style connectors.

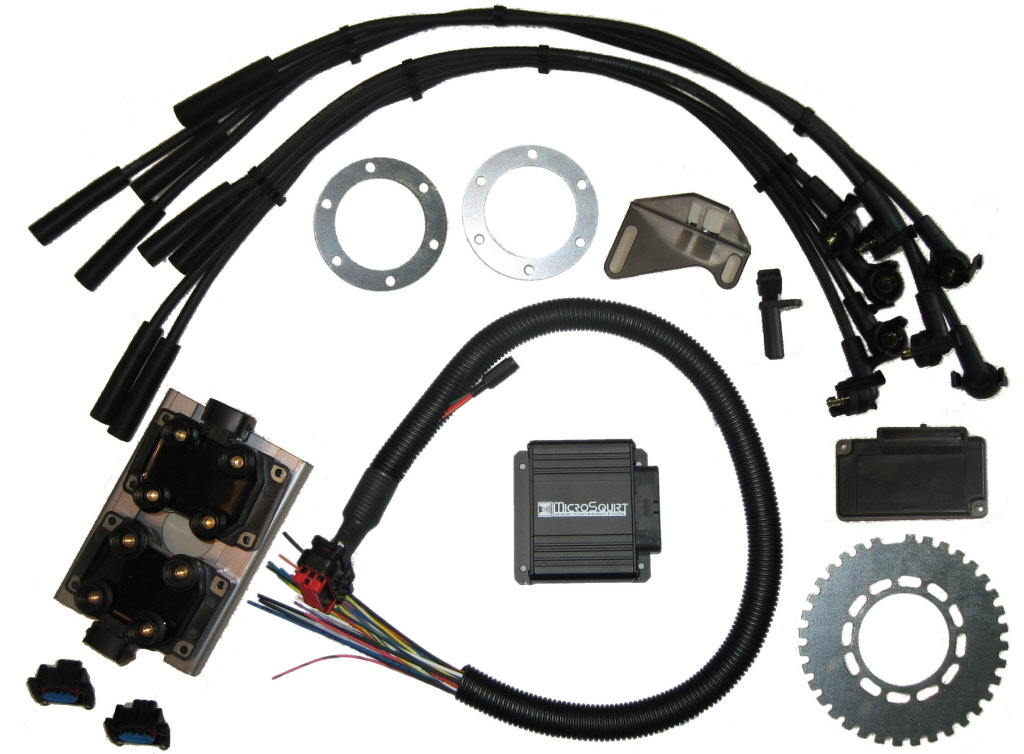

Complete Microsquirt system for Rover V8 engines

uSquirtRV8
A complete package of everything you need to install distributorless, 3D mappable ignition and fuel injection to your Rover V8.

This package contains:

  • Microsquirt ECU
  • Pair of new coil packs
  • 8mm Silicone spark plug leads
  • Coil pack bracket
  • Rover V8 trigger wheel kit
  • Rover-specific crank sensor bracket
  • New crank sensor
  • Throttle sensor
  • EDIS ignition module
  • Loom kit

Complete Microsquirt system for Ford Zetec/Duratec engines

uSquirtZetec

A complete package of everything you need to install distributorless, 3D mappable ignition and fuel injection to your Zetec or Duratec engine.

The Microsquirt can run your ignition using either the EDIS system or external ignitiors.  If you already have coilpack and EDIS module then you may use the ones that we have already.  If you don't have the EDIS module, coilpack etc then we can supply them for you.

This package contains:

  • Microsquirt ECU
  • Pre-wired 35 pin waterproof ampseal connector and stub loom - every wire has been printed with labels all along its length
  • Deluxe Loom kit and shielded wire
  • Pack of 7 new connectors for crank sensor, temperature sensors and injectors
  • New coilpack connector

Tacho Driver

Tacho
tachodriver130
Tacho driver module for coil-driven rev counters
Suitable for Megasquirt, Megajolt and many other ECUs the tacho driver allows you to retain your existing coil driven rev counter.  If you have a more modern rev counter accepts the 5 volt output of most ECUs then you do not need one of these.

Wasted-spark

Individual coil per cylinder

2-input tacho driver

4-cylinder engines

2-cylinder engines

3-input tacho driver

6-cylinder engines

3-cylinder engines

4-input tacho driver

8-cylinder engines

4-cylinder engines





Please note that some rev counters can be particularly difficult and may require additional tweaks to work correctly.

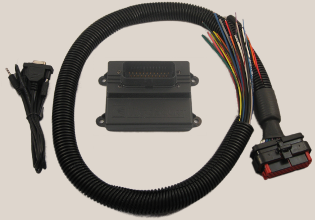

Spare Microsquirt loom

microsquirtloom130
Spare pre-assembled and printed loom for Microsquirt ECUs.  Ideal if you want to use your ECU in multiple vehicles.

USB-serial adaptors

USB-serial adaptor for computers lacking a serial port.

Many new laptops and PCs do not come with a serial port.  These adaptors plug into a USB socket and allow you to connect up to your ECU.

Many cheaper adaptors give problems, these adaptors use a premium chipset and tested to work with Megajolt, Megasquirt and Emerald ECUs.
