The Shift-X Sequential Shift Light is a 3-stage linear shift-light module for integration into your own dash project. If you're using it with our RaceCapture/Pro datalogger you can configure it for any use you like - overheating warning, oil pressure alarm, monitor your drift angle.

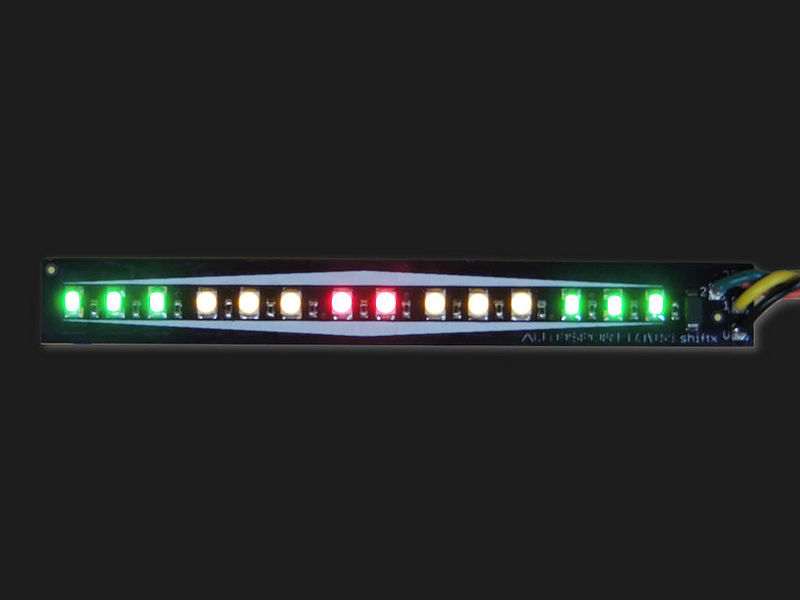

LED configuration
- 6 green LEDs comprise the outer segments, wired together
- 6 yellow LEDs comprise the middle segments, wired together
- 2 red LEDs are in the centre, wired together

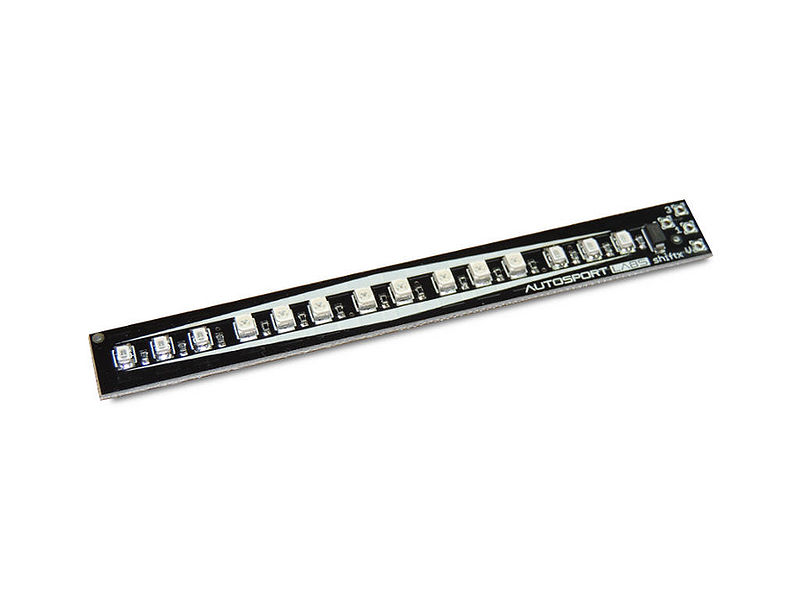

Physical Features
- All surface mount construction for ruggedness and a smooth bottom, ideal for mounting with double stick foam tape.
- 4.2" x 0.5" display made up of 14 LEDs in a 3 stage array
Electrical Connections
- +5v common power
- Can use +12V feed using a 510-820 Ohm 1/2 watt current limiting resistor (not supplied)
- 3 triggers to activate each colour segment
