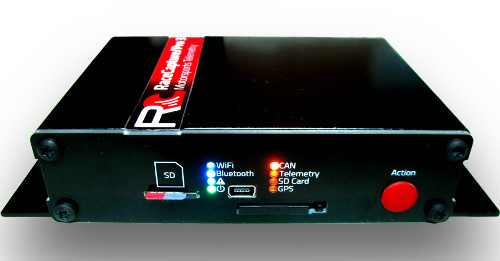

The new RaceCapture/Pro Mk3 now includes built in WiFi and Bluetooth even in the basic model.  Also included is wireless GoPro camera control, again included as standard at no extra cost and no unlock licences to use it.

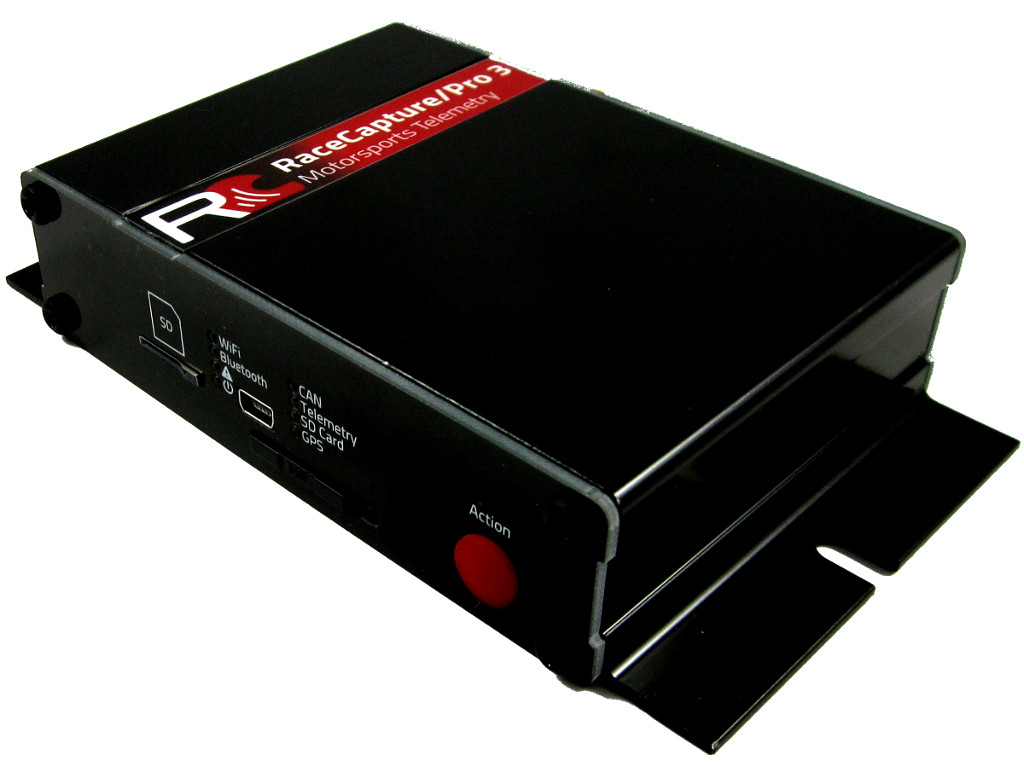

Next generation of data, telemetry, and control

Your time on track matters and you want to maximize every minute and dollar toward tuning the engine, honing your racecraft, or finding that extra edge over your competition. As motorsports evolves, so should motorsports telemetry technology: more real-time, extending your reach to the people who matter. Showing you what you need while you’re still at the track, so you can make changes and adapt now, not later. Autosport Labs’ new RaceCapture/Pro MK3 brings flexible data acquisition, predictive lap timing, real-time telemetry, and control to your race car.

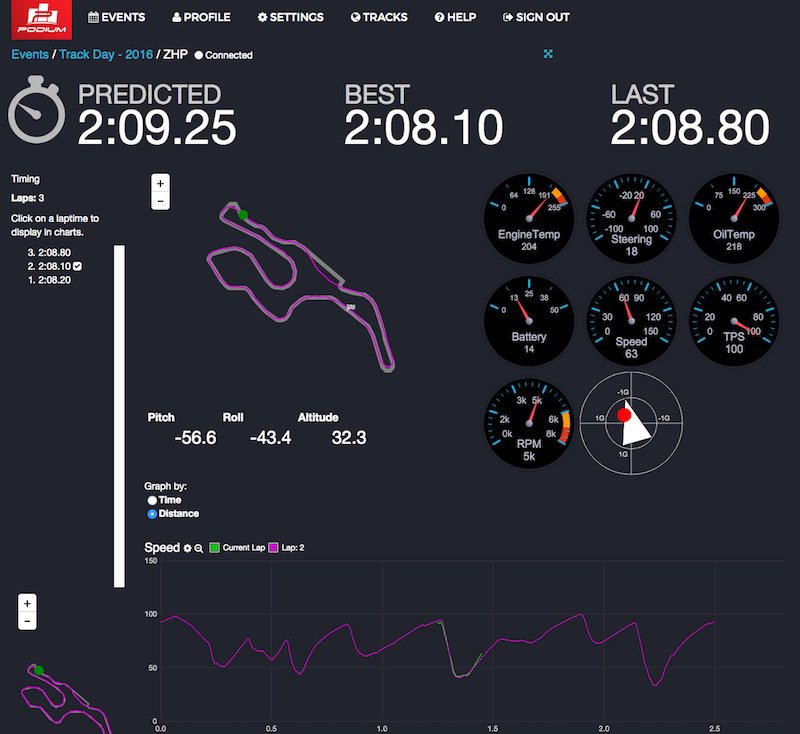

Live streaming to Podium

podium

Live-stream your racing to Podium, where you can perform real-time analysis on engine, chassis and driver performance. Share and compare your laps with friends, colleagues, and race coaches around the world. Learn more at https://podium.live

robin_cole_podium

RaceCapture App – included

Create your own dashboard and feed your sensor data to the gauges you customize.  Show predictive lap times with real-time +/- delta feedback vs. your best lap, and instantly review your laps right as you come off track. It’s all built-in to the RaceCapture app with user-friendly, touch optimized experience, and it’s easy to get set up and going!

The RaceCapture app works on the devices you love – with Android, iOS, Windows and OSX support. Monitor critical engine data in real time with your iPad or Android tablet standing right at your race car, or run it on a big screen with your Windows or OSX machine to analyze your lap data.

Visualizations for specialty sensors

Got special sensors, like tire and brake temperature? We have a dedicated view just for that.

Built in analysis features

Instantly review your laps and runs with the built-in, touch-optimized analysis capabilities – right on your Android or iOS device!

Wireless Everything

wifi_bluetooth_cellular

WiFi and Bluetooth 2.0 are integrated onboard for connectivity to the RaceCapture app on Android and iOS.

Optional 3.5G Cellular Telemetry

The optional on-board, high performance, worldwide-capable 3.5G GSM cellular module provides real-time streaming of telemetry data to the Podium cloud platform. You can monitor engine sensor data, chassis data or perform real-time driver coaching on a lap-by-lap basis – to the pits or anywhere in the world. Visit http://podium.live for details.

High performance GPS

gps

An internal GPS module provides native GPS sample rates at 1/5/10/25/50 Hz. Position, speed, altitude, distance and GPS statistics are included.

Predictive Lap Timing

100’s of tracks available worldwide combined with on-board predictive lap timing provides real-time feedback to the driver.

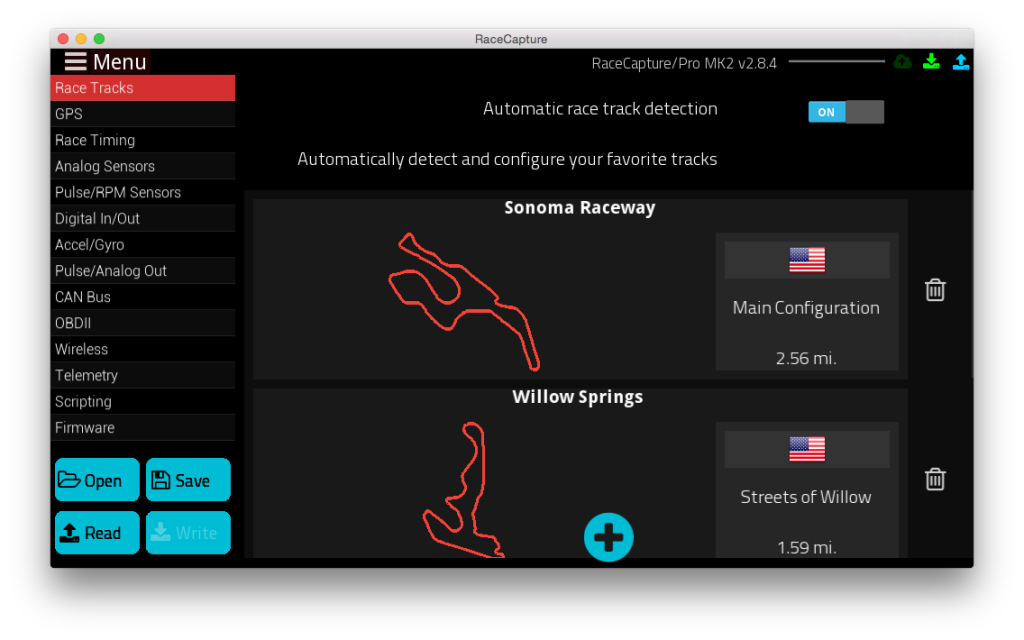

With the included interactive track map builder you can be assured you can roll up to your favorite track and get the lap times and statistics you need.

6 Axis Accelerometer + Gyro

accel_gyro
Get 3-axis G-force plus Yaw / Pitch and Roll using the on-board high performance 6 axis Inertial Measurement Unit (IMU) – use it to analyze peak cornering G’s, or detect oversteer / understeer situations.

Dual CAN bus

can_obdii

Two CAN 2.0 compliant channels are available, providing baud rates up to 1MBPS. CAN bus data can be mapped to channels using built in OBD-II, direct CAN channel mapping, or custom logic mapping via Lua scripting.   Both CAN channels are available on the RJ45 bus and the molex connector.

Software controlled CAN termination

A RaceCapture exclusive: with a flip of a switch in the RaceCapture App you can enable or disable built-in CAN termination – no external resistors to add, switches to flip, or jumpers to set.

Powerful ECU integration

In addition to CAN OBDII support, RaceCapture/Pro MK3 also supports mapping of channels from CAN data streams, allowing direct integration with CAN enabled ECU such as Motec, Link, AEM, Megasquirt – including direct integration to OEM-specific CAN networks, such as found on the BMW E46.  You’ll be able to map data from two different CAN bus channels for maximum flexibility.

can_mapping_presets

Analog, Digital, and GPIO output capabilities

8 external 0-5v analog inputs with 12 bit ADC, 4 channel timers for measuring RPM or frequency and 3 general purpose I/O ports for low speed inputs or controlling outputs up to 1A. (open drain)

analog_channel_config

Onboard SD card logging

A micro-SD card slot is provided for on-board data acquisition file recording. 32GB SDHC cards are supported.

USB Connectivity

A standard USB interface for direct connection for configuration, telemetry monitoring, and firmware upgrades.

GoPro™  Camera Control

Use the built-in WiFi capabilities to control a WiFi enabled GoPro camera using a speed-based trigger, allowing precise synchronization between data and video.

Extensibility through Lua Scripting

Design your own custom behaviors using the simple on-board Lua scripting. Trigger a fan or pump based on sensor readings, activate warning lights, create real-time calculated channels, communicate with ECUs and other devices using CAN and RS232 serial communications. The sky’s the limit!

luascripting_example

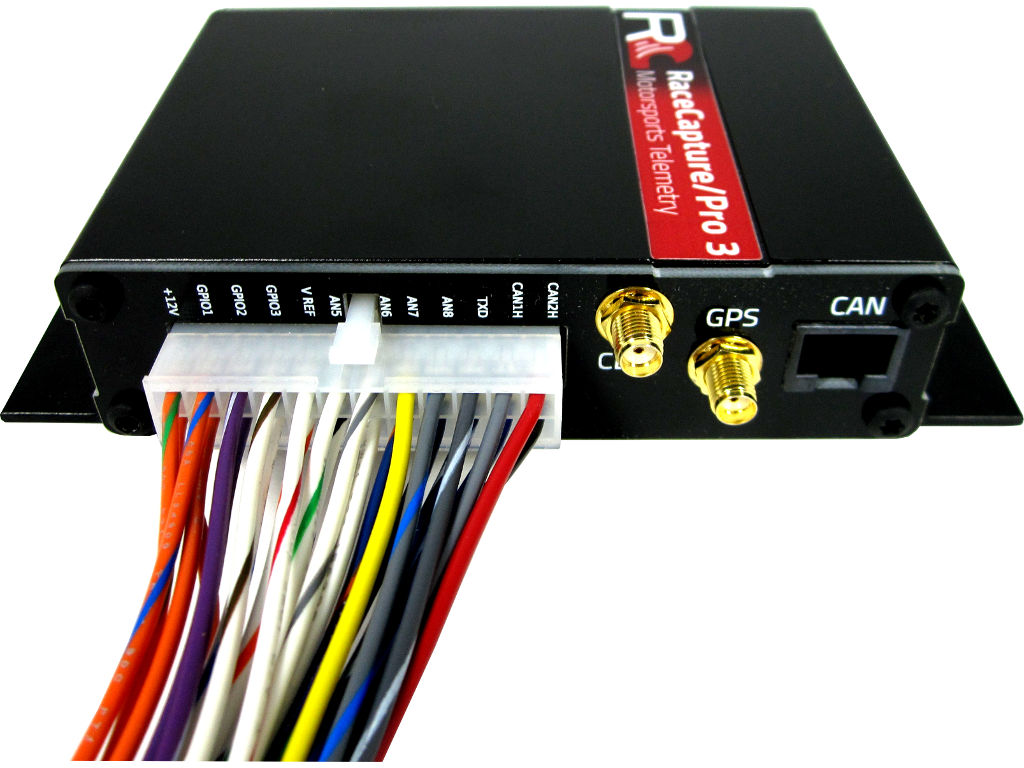

Convenient wiring and connectionsmk3_molex_wiring

A single molex plug, antenna, and cellular connections all on one end of the unit makes for a clean installation.

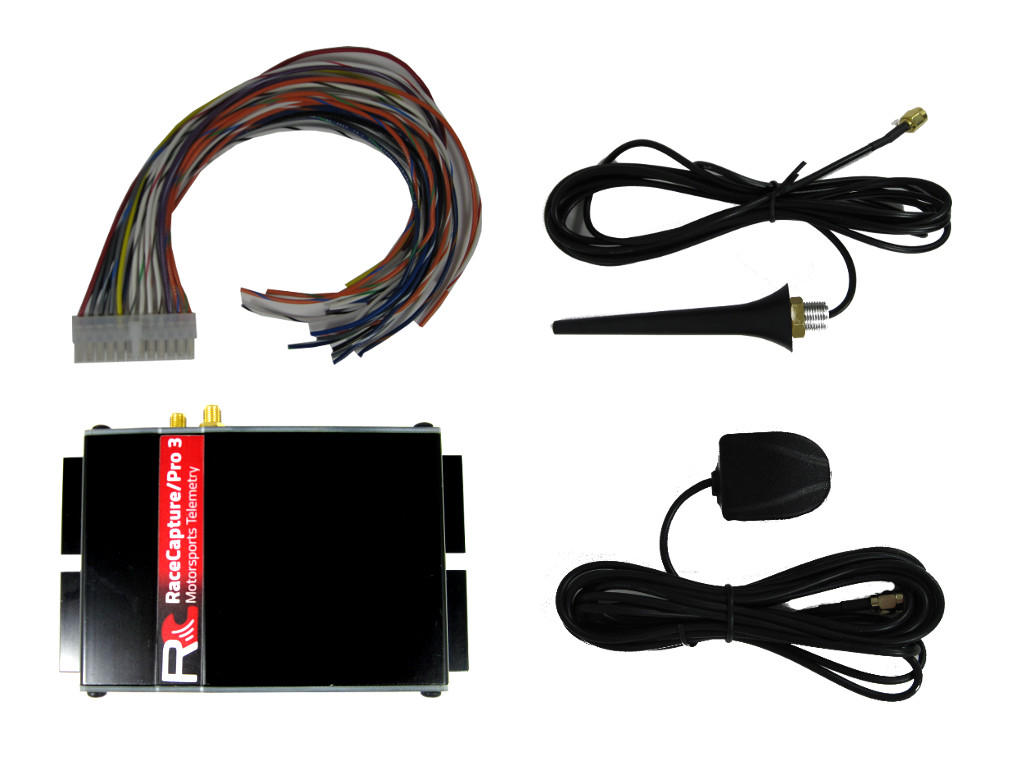

Included in the package

mk3_all_parts

  • RaceCapture/Pro MK3
  • Wiring harness with 12” flying leads
  • External magnetic mount GPS antenna
  • Roof mount GSM antenna (if optioned with 3.5G cellular)
  • USB cable
  • Quick start guide



Specifications

Sensors
Analog Inputs
Channels 9 (8 external + 1 internal battery/supply voltage)
Voltage range 0-5v
Input impedance Greater than 1M ohm
Voltage Protection 400v (intermittent)
ADC precision 12 bit
Maximum sample rate 1000Hz
Mapping Raw / linear formula / interpolated map
Digital I/O
Channels 3
Output mode type Open Drain
Output current capacity 1A, inductively clamped
Input mode voltage range 0-12v
Input voltage protection 0-40v
Maximum sample rate 1000Hz
Timer inputs (RPM / Frequency)
Channels 4
Voltage Protection 400v (intermittent)
Maximum sample rate 1000Hz
Mapping RPM, Frequency
Voltage Reference
Output Voltage / Capacity 5v / 500mA
CAN Bus
CAN Channels 2
CAN baud rate 125K, 250K, 500K, 1M Baud
CAN filters 14 per channel
Protocol Support OBDII PID, custom CAN mapping
CAN Bus CAN 2.0 compatible, 1M baud
CAN termination Software controlled
Serial
Aux Serial RS232
Max Baud Rate 230400
Cellular Telemetry (Optional)
Cellular 3.5G GSM worldwide compatible
Maximum Sample Rate 10Hz
Wireless
WiFi 802.11bgn
WiFi Modes Access Point, Infrastructure
Bluetooth Bluetooth 2.0
Maximum Sample Rate 50Hz (Bluetooth and WiFi)
GPS
GPS Type External active antenna
Sample Rates supported 1 / 5 / 10 / 25 / 50Hz
GPS accuracy 2.5M CEP
Inertial Motion Unit
Accelerometer Channels 3 (X/Y/Z) (2G, 4G capable)
Gyro Channels 3 (Yaw/Pitch/Roll) (1000 degrees/sec)
Storage
Micro SD Up to 32GB (SDHC)
CAN bus direct mapping 30 direct CAN mapping channels
Capabilities
Channel Support 200
Predictive Lap Timing Built-in
Track Mapping Circut and point-point
Track maps 200 built in for autonomous auto-detection;
unlimited via RaceCapture app
with interactive track map builder
Sectors per track 20
Analysis Included in the RaceCapture App
Export data format Plain CSV (RaceRender compatible)
Physical
Dimensions 150 x 85 x 30mm (5.9 x 3.35 x 1.18in)
Temperature range -40 to 85c
Environmental IP50 rated
Weight 255g (12 oz)
Physical Molex Connector, 24 pins
SMA for external GPS antenna
SMA for cellular module
Power Consumption (max) Main System: 0.6W
With Wireless: 1.6W
With Cellular Telemetry: 8.6W
With Cellular Telemetry and Wireless active: 9.6W
